25mm Pin Nails with Round Washer – Box of 100
Replacement pin nails with a round washer for compatible mini nail guns. Each nail features a 25 mm pin section, a 3 mm pin diameter and a 16 mm round washer, with an overall assembly length of 41 mm. Supplied in a box of 100 pieces
Applications and tool compatibility
This style of round pin nail is used with mini concrete nailers for fastening applications such as cable ducts and cable trunking. The broad round washer provides a wider contact area against the item being fixed.
Check that your nail gun accepts this nail design and the 7.3 mm upper sleeve size before ordering. Suitability for the base material and fixing task depends on the compatible tool and its specifications.

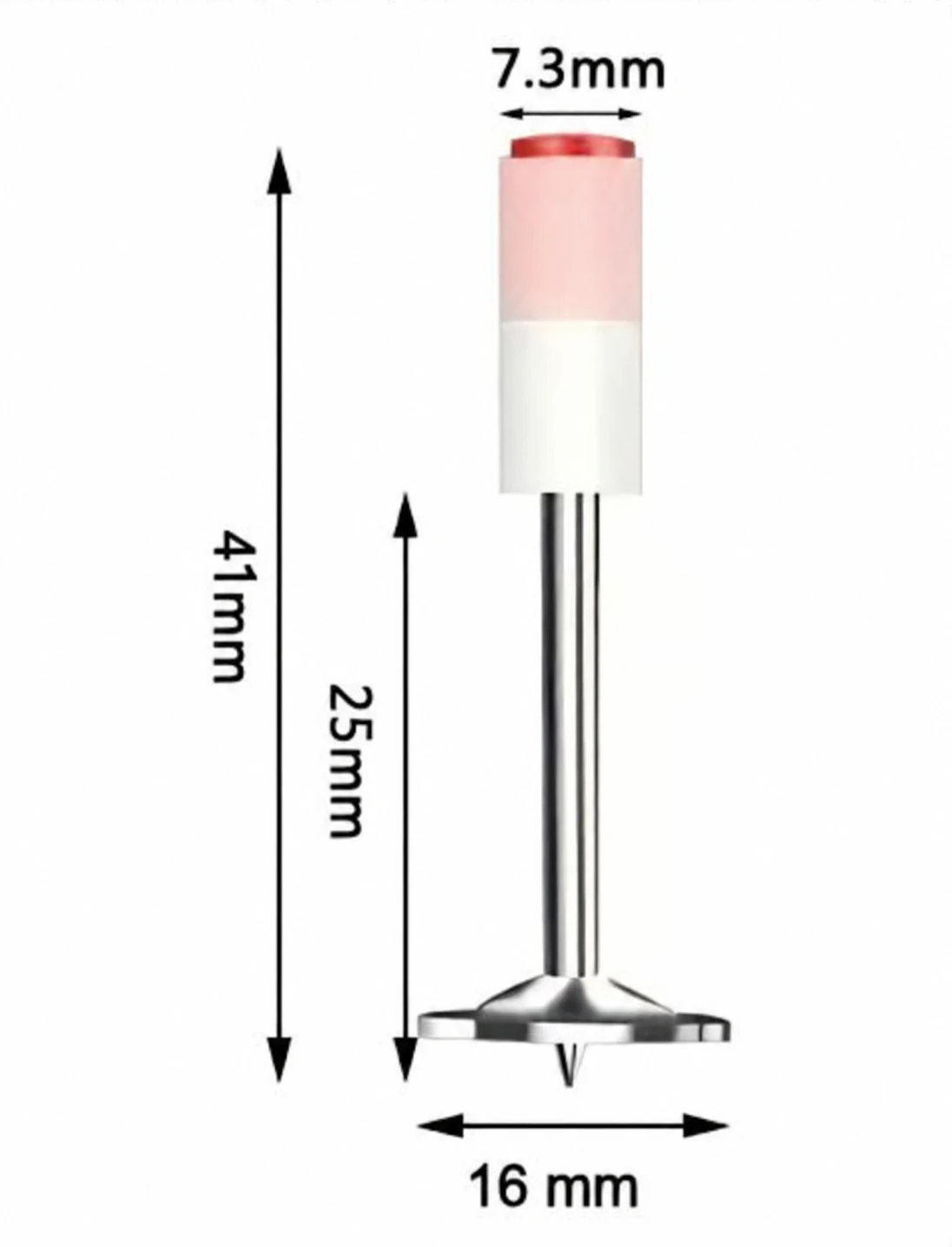

Dimensions
- Pin section length: 25 mm
- Overall assembly length: 41 mm (4.1 cm)
- Pin diameter: 3 mm
- Round washer diameter: 16 mm
- Upper sleeve diameter: 7.3 mm
Dimensions are taken from the supplied product image. The 25 mm measurement refers to the pin section, not the overall assembly length.
Package contents
1 box containing 100 pin nails with round washers. Nail gun sold separately.
