MC4-style solar connector designed for photovoltaic installations and secure DC cable connections. It supports high-voltage solar systems up to 1500V DC and a current rating of 30A.
Key Features
- Rated voltage: Up to 1500V DC
- Rated current: 30A
- Designed for photovoltaic and solar cable connections
- Crimp connection system
- Keyed housing for secure mating
- Suitable for repeated connection and disconnection cycles
- High current-carrying capability
- Weather-resistant construction for outdoor solar installations
Technical Specifications
- Model: WSPVCC
- DC test voltage: 1500V / 1000V DC
- Overvoltage test: 6000V, 50Hz, 1 minute
- Contact resistance: Approximately 1 mΩ
- Contact material: Copper, tin-plated
- Insulation material: PPO
- Protection rating: IP2X / IP67
- Flame class: UL94-V0
- Safety class: II
- Suitable cable outer diameter: 4.5–8.5 mm
- Suitable cable cross-section: 2.5–10 mm²
- Connecting system: Crimp connection
- Temperature range: -40°C to +125°C
Suitable Uses
- Solar panel string connections
- PV extension cables
- Solar combiner box wiring
- Inverter DC input connections
- Residential and commercial photovoltaic installations
Package Includes

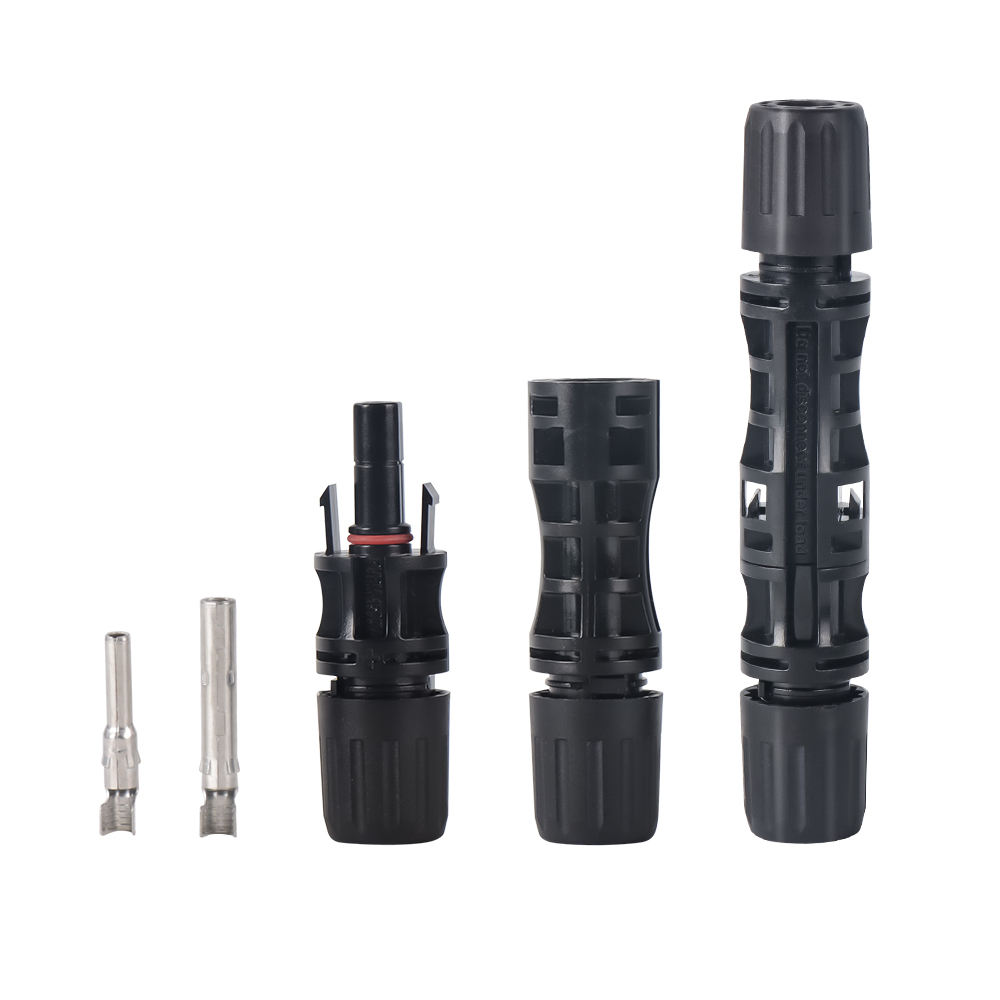

- 1 × Male MC4-style connector housing
- 1 × Female MC4-style connector housing
- 2 × Crimp contacts
Note: Correct crimping tools and proper cable sizing should be used to ensure a safe and reliable connection.
