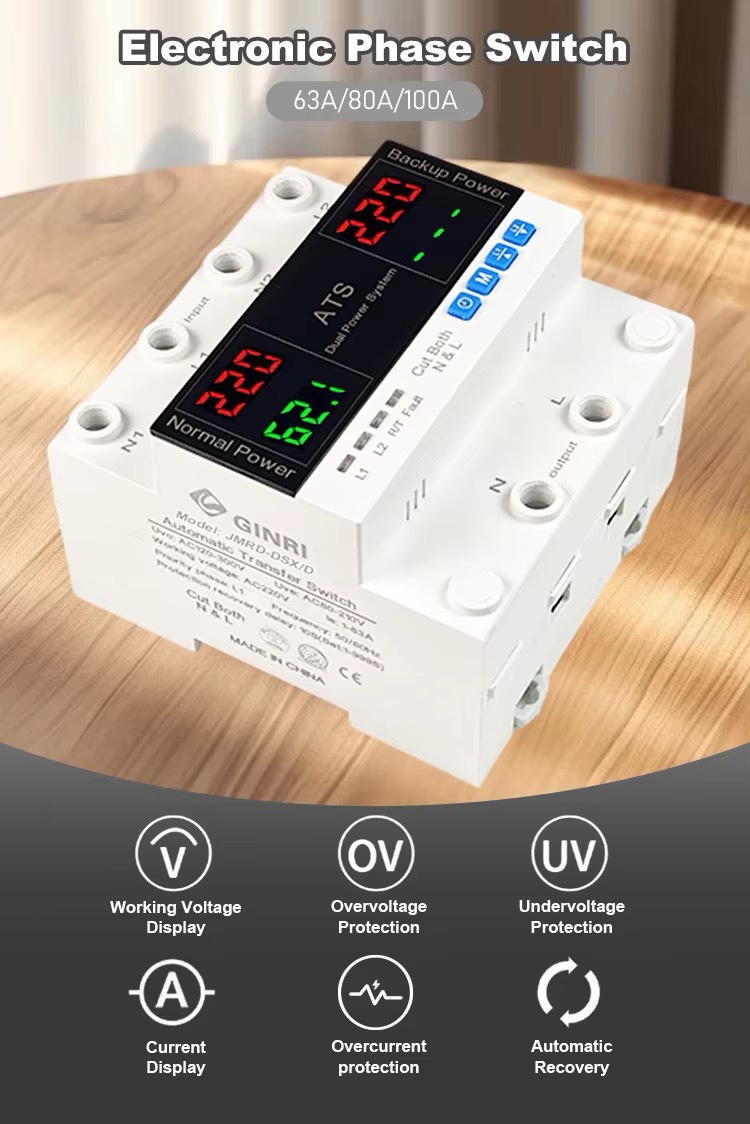

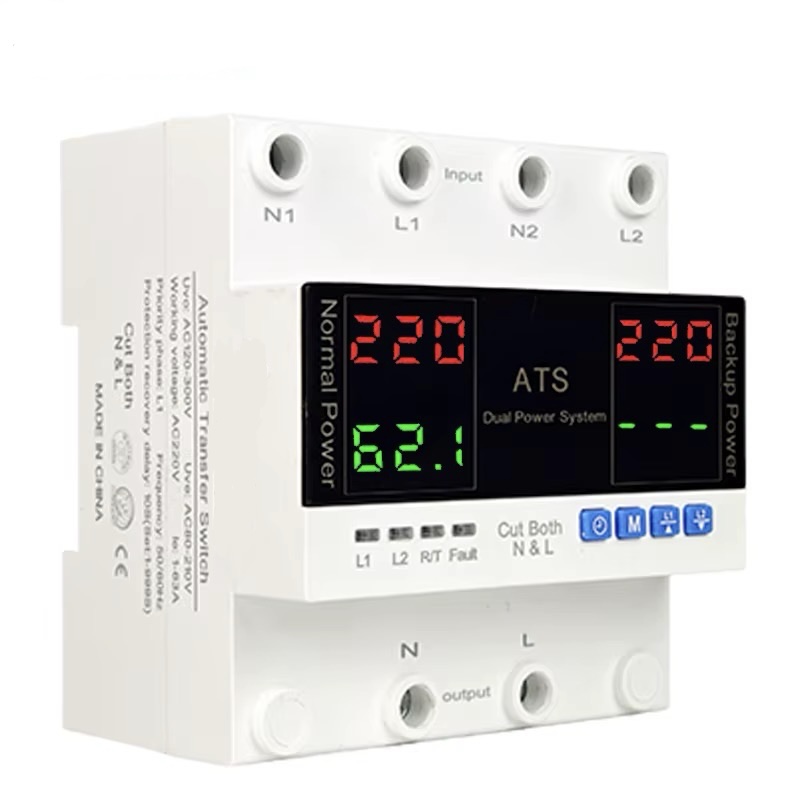

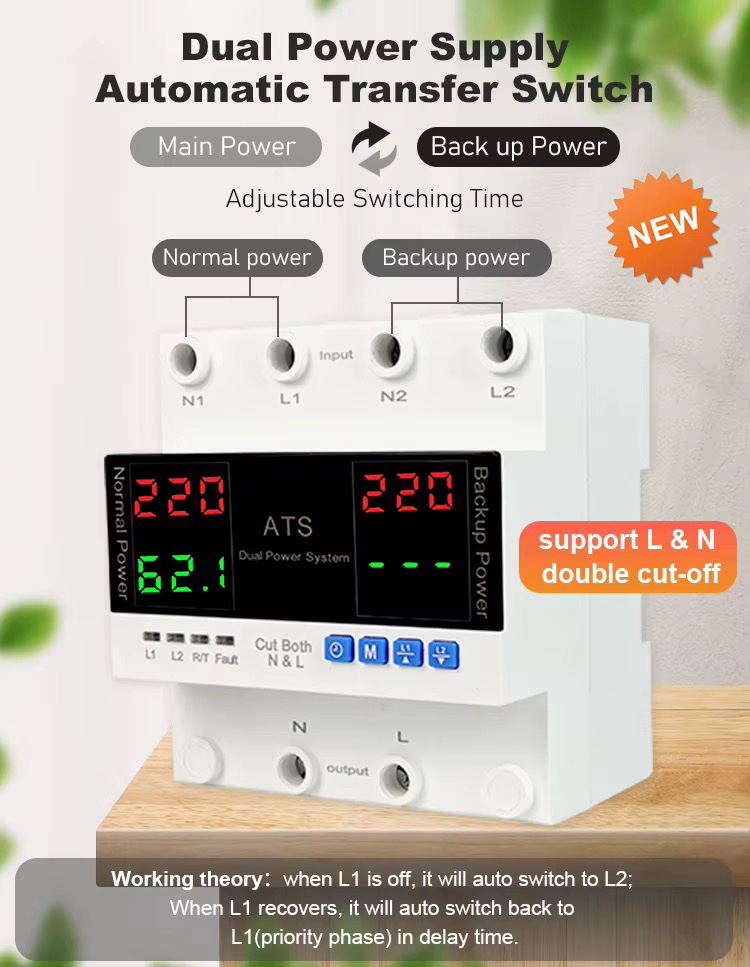

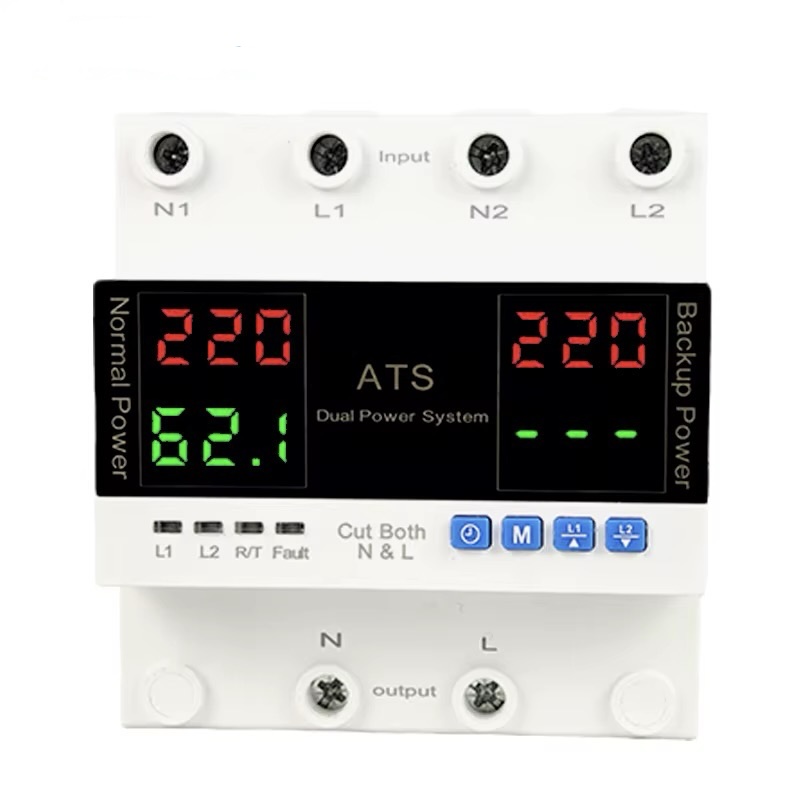

The 63A Automatic Transfer Switch and Protector automatically or manually transfers a single-phase load between two 220V AC power sources, such as utility power and a backup inverter or generator. It switches both the live and neutral conductors and provides adjustable electrical protection with a clear digital display.
Key Features
- Two-pole switching: disconnects both Live and Neutral
- Automatic transfer or manual source selection
- Selectable priority source: L1, L2 or non-priority mode

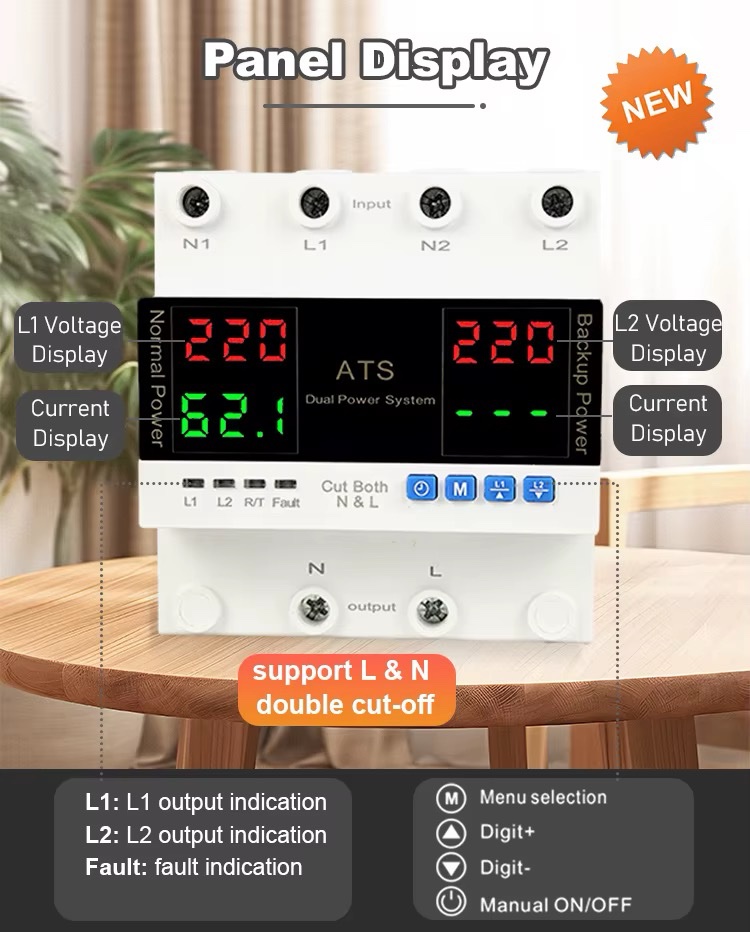

- Displays the voltage of both sources and the load current
- Adjustable overvoltage, undervoltage and overcurrent protection
- Adjustable power-on, recovery and transfer timing
- High-temperature protection with fault indication
- Voltage and current calibration settings
- Compact DIN-rail mounting
Technical Specifications
- Rated current: 63A
- System voltage: 220V AC, single phase
- Operating voltage range: AC 80–300V
- Frequency: 50/60Hz
- Overvoltage setting range: 120–300V or OFF
- Undervoltage setting range: 80–210V or OFF
- Overcurrent setting range: 1–63A or OFF
- Temperature protection range: 40–120°C
- Power-on and recovery delay range: 1–999 seconds
- Overcurrent action delay: 0.1–30 seconds
- Measurement accuracy: Class 0.5
- Protection class: IP20
- Operating temperature: -5°C to +40°C
- Installation altitude: below 2,000m
- Approximate size: 90 × 66 × 76mm
Installation notice: The input must be connected through suitable circuit protection. Installation and wiring should be performed by a qualified electrician. Disconnect all power sources before installation or maintenance.
