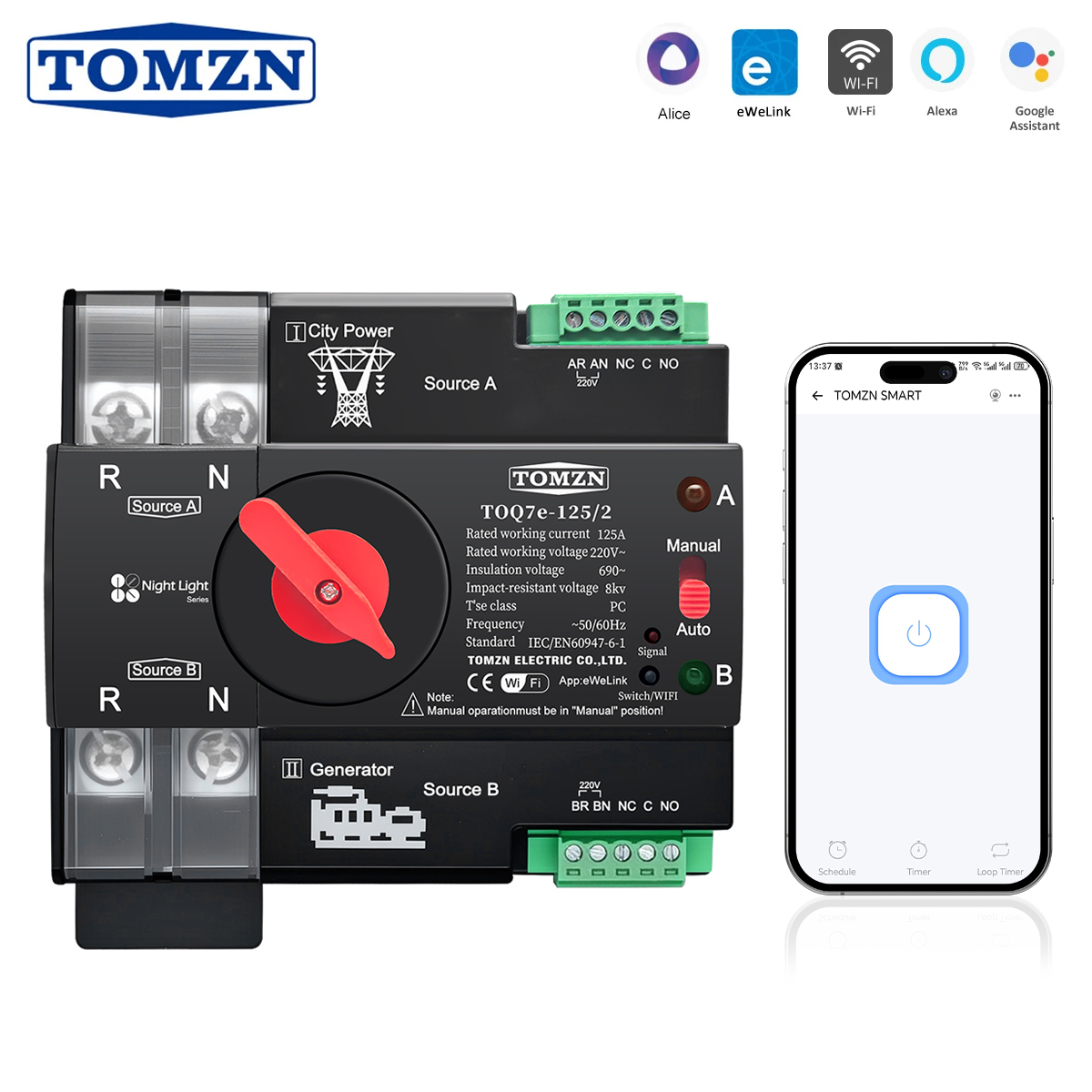

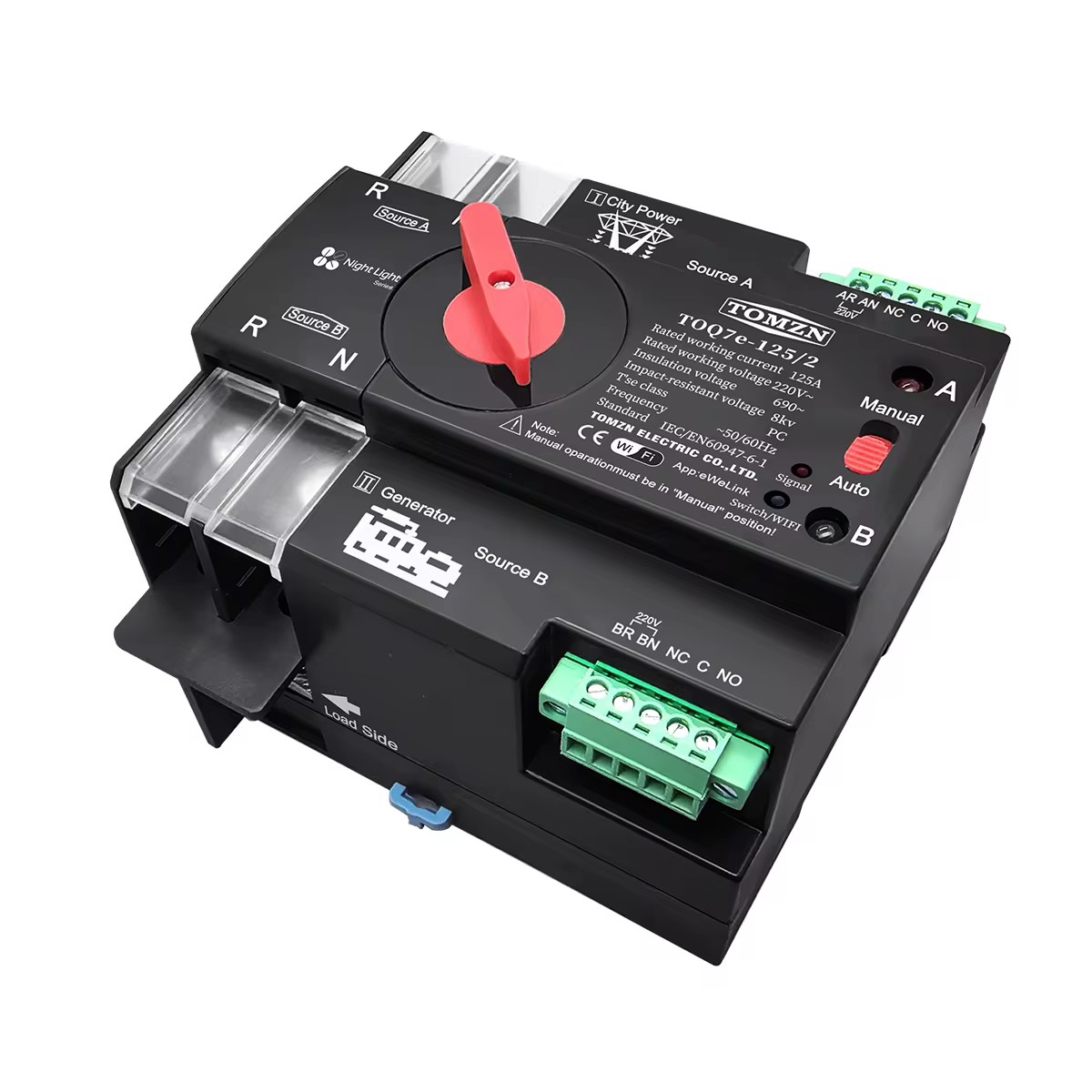

This Night Light Series mini ATS dual power automatic transfer switch is PC-level rated and designed for household power transfer.
When the normal city power supply becomes abnormal, the backup power source takes over instantly with no interruption, ensuring continuity, reliability, and safety of your power supply.

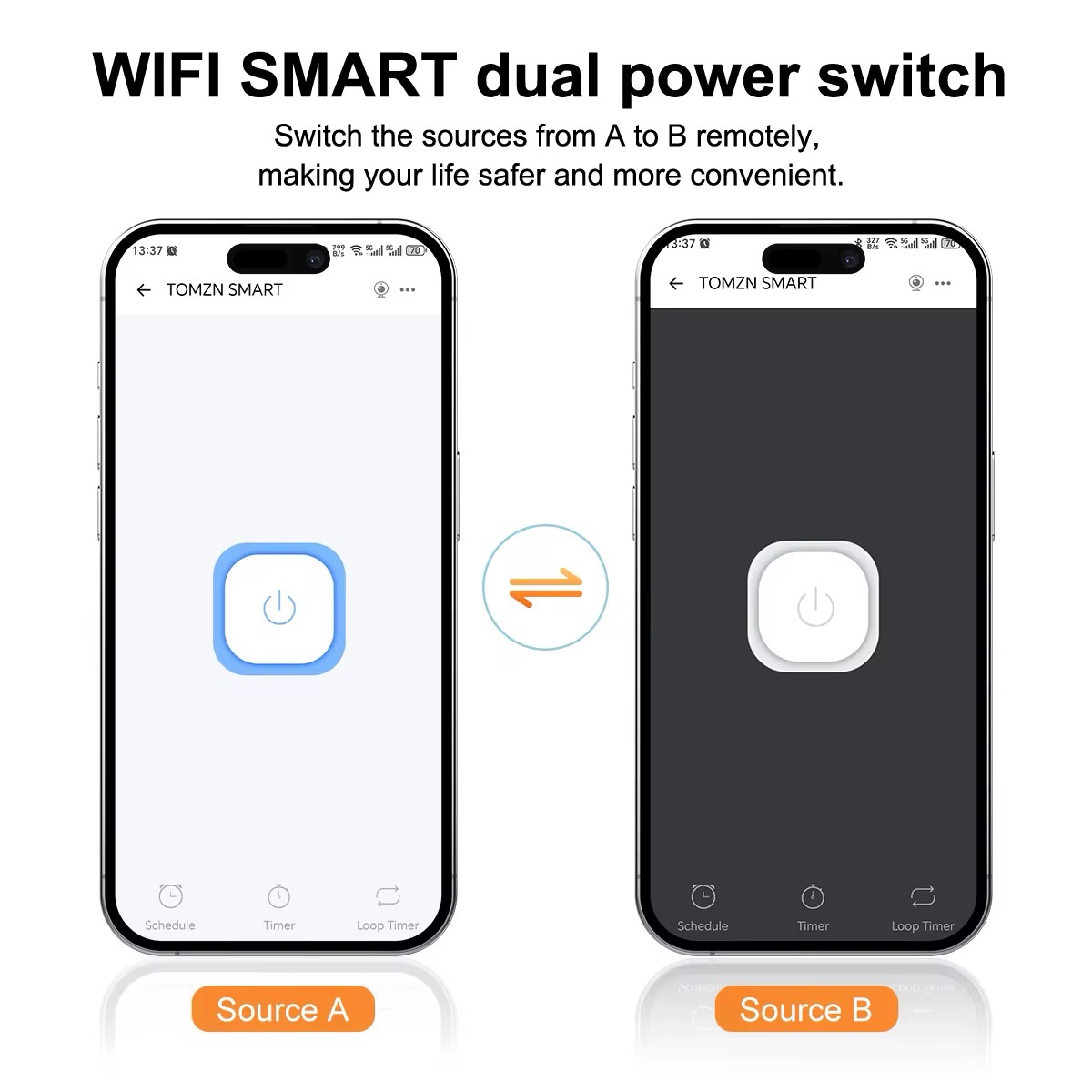

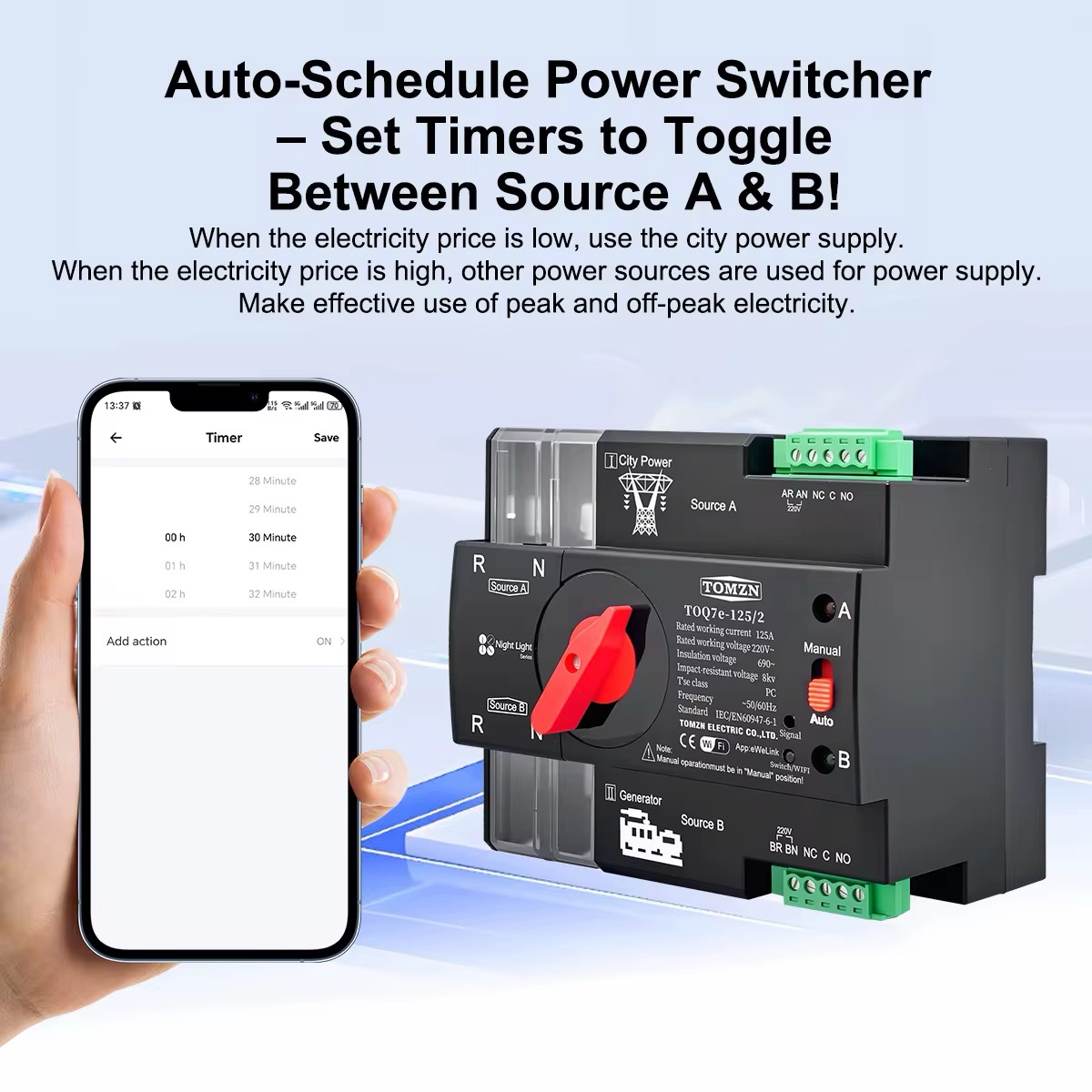

Rated working current is 125A at 220V. It supports both manual and automatic operation via a front-facing switch, and can also be controlled remotely through the eWeLink app, including scheduling switch times.
A Power-up Response function lets the device preferentially switch to Source A (city power) on startup, just like a standard ATS. Key specs: rated impulse withstand voltage 8kV, rated supply voltage 220-230V (50-60Hz), switching time under 50ms, action time under 50ms, electrical life of 2000 operations, mechanical life of 5000 operations. Compatible with Alexa, Google Assistant, and Wi-Fi app control.
Works with L+N 220-240V, 50-60Hz supply only.
