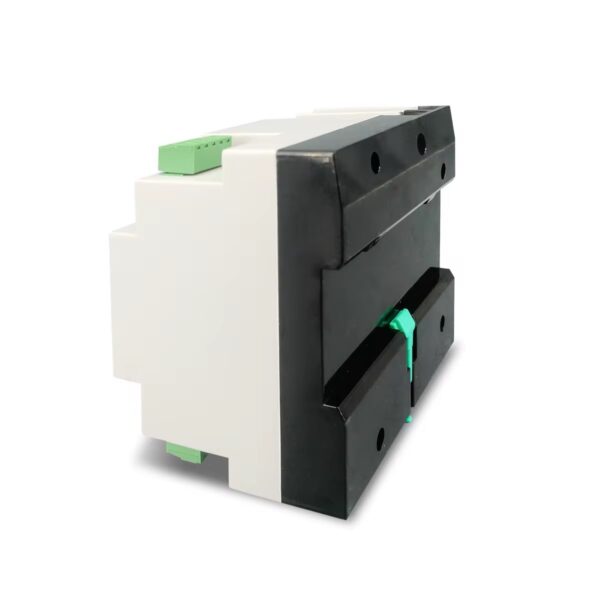

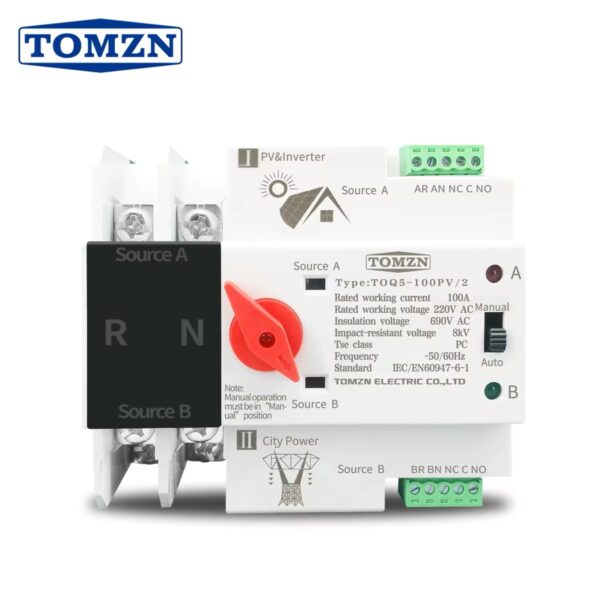

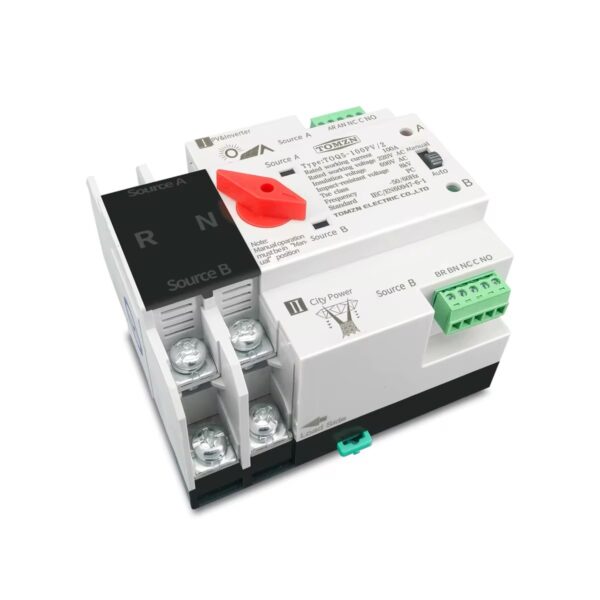

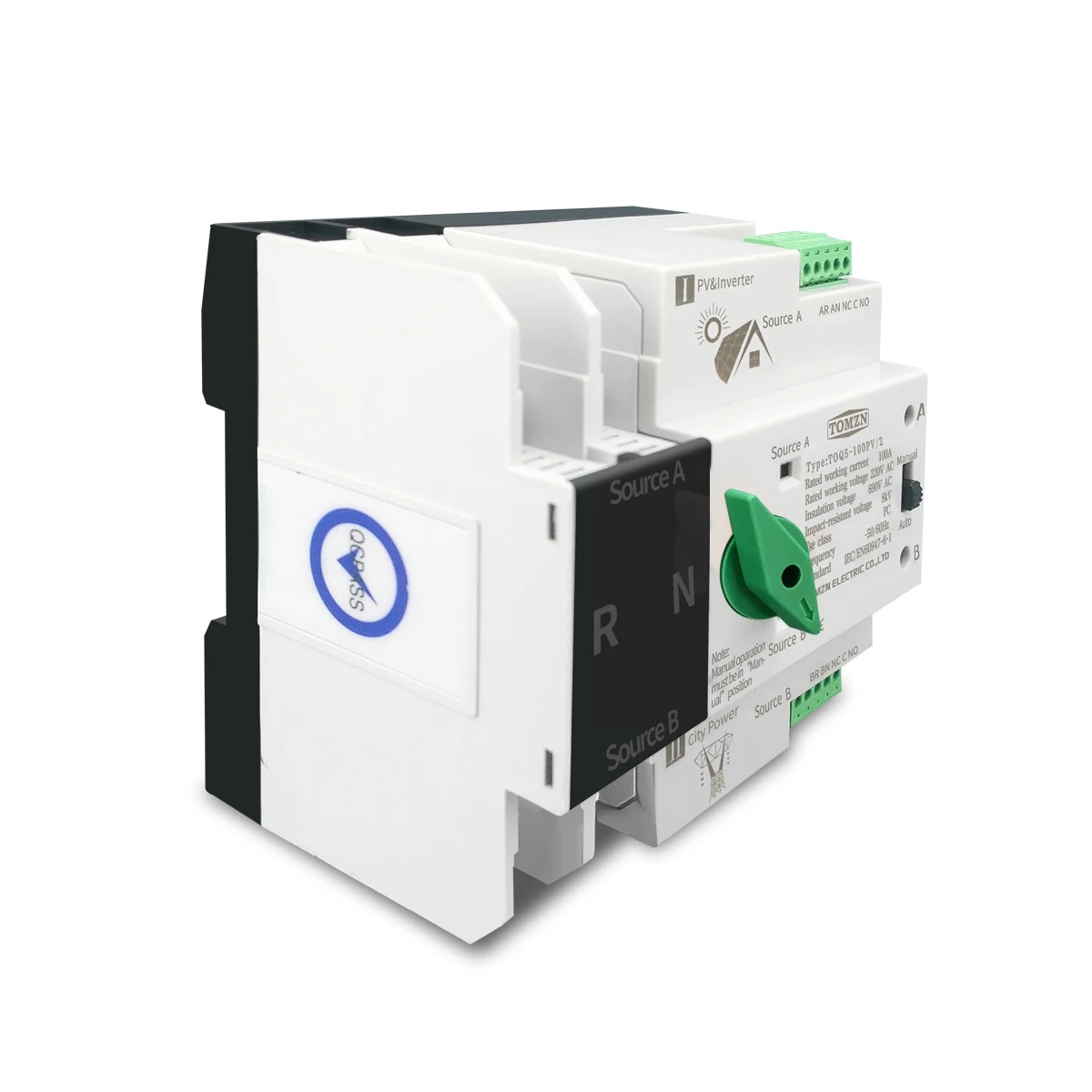

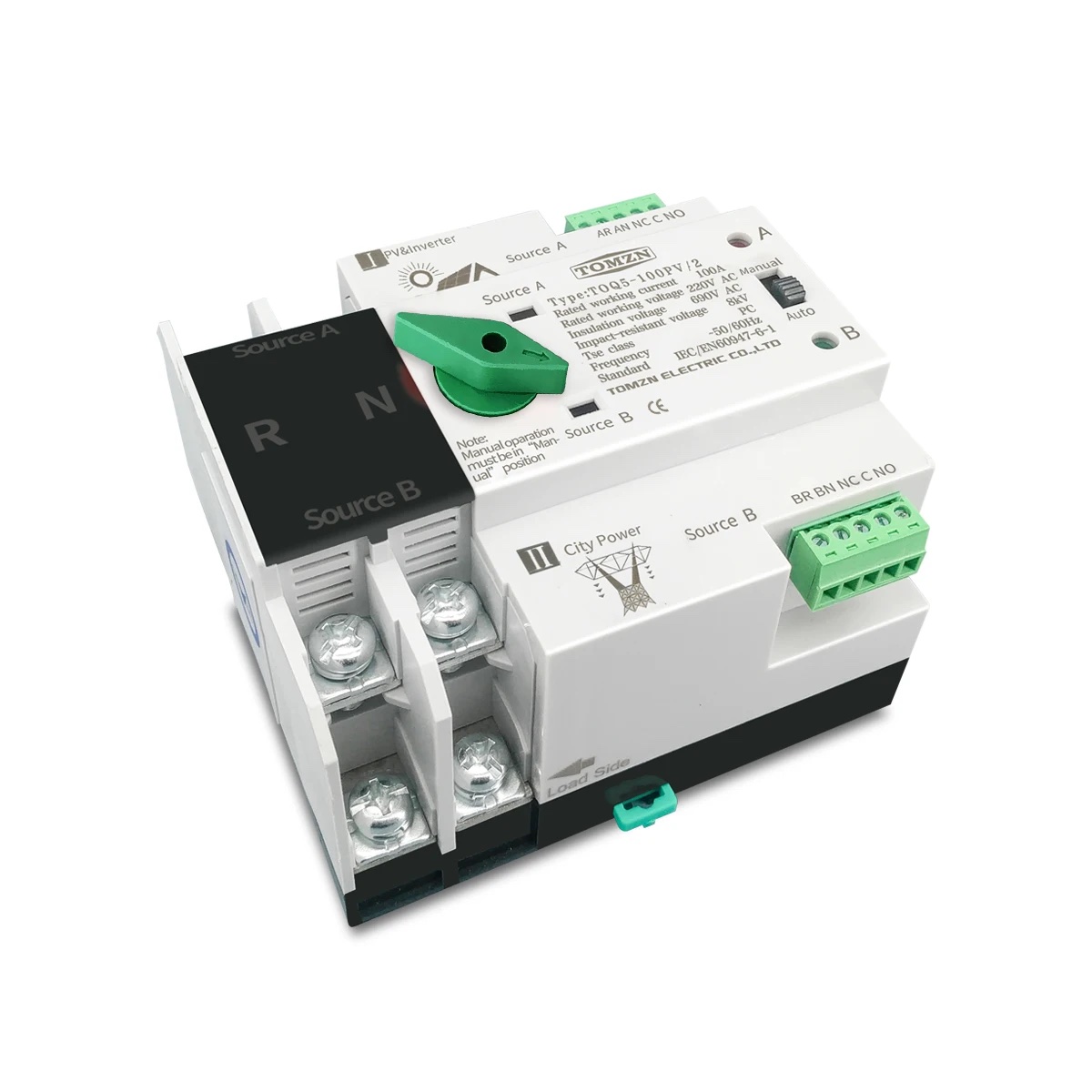

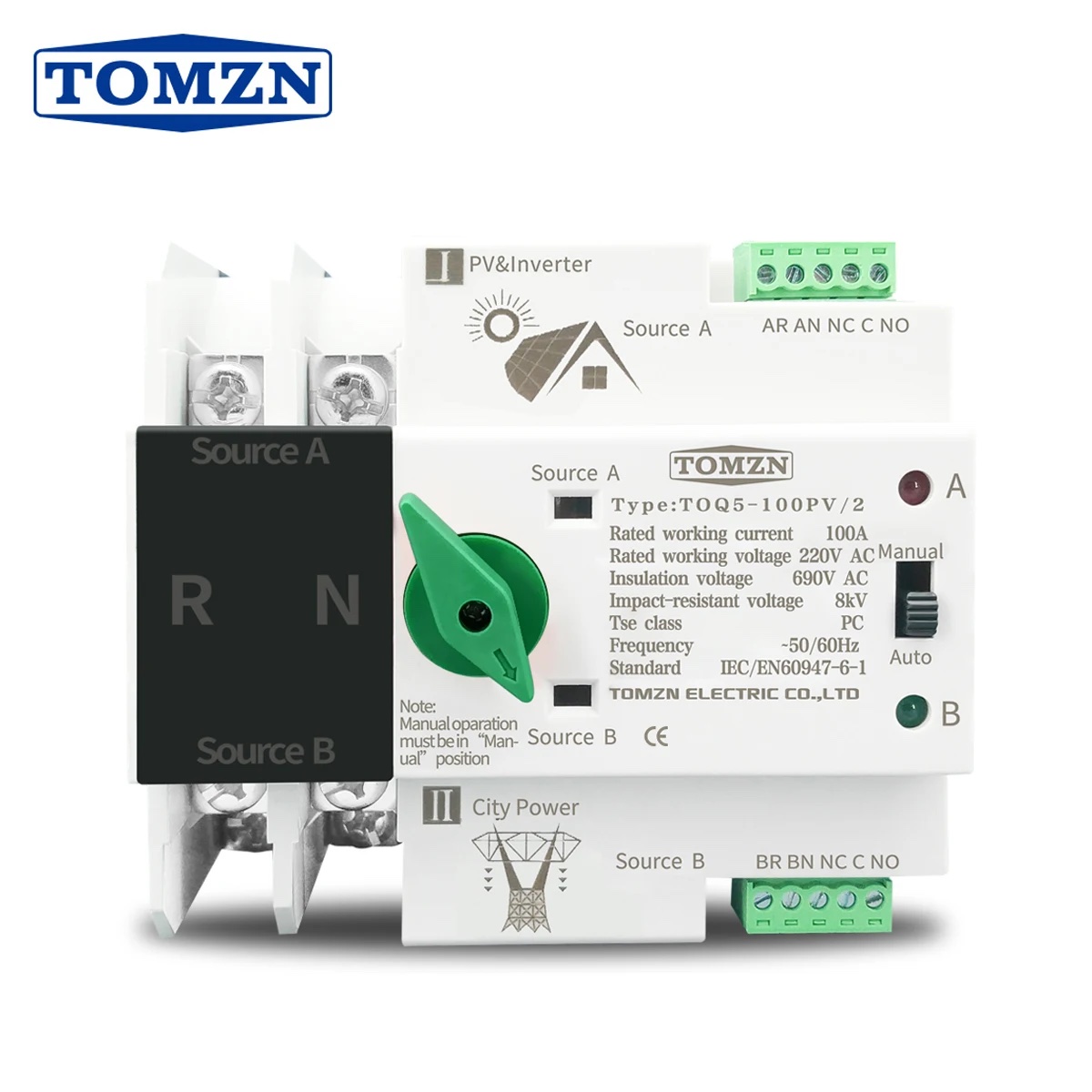

TOMZN TQO5-100PV/2 Single-Phase Automatic Transfer Switch (ATS) – 100A
Ensure continuous and reliable power for your home, shop, or solar installation with the TOMZN TQO5-100PV/2 Single-Phase Automatic Transfer Switch (ATS).
This dual-power ATS automatically transfers load between Source A (Solar / PV / Inverter) and Source B (Grid / City Power), guaranteeing uninterrupted operation whenever one source fails.
Designed for modern single-phase electrical systems, this ATS supports both Auto and Manual modes, features clear LED status indicators, and uses high-quality PC flame-retardant material for enhanced safety. It is ideal for residential solar setups, commercial use, and backup power systems.
Key Features
Single Phase, 100A Capacity – Suitable for high-load home and commercial systems.

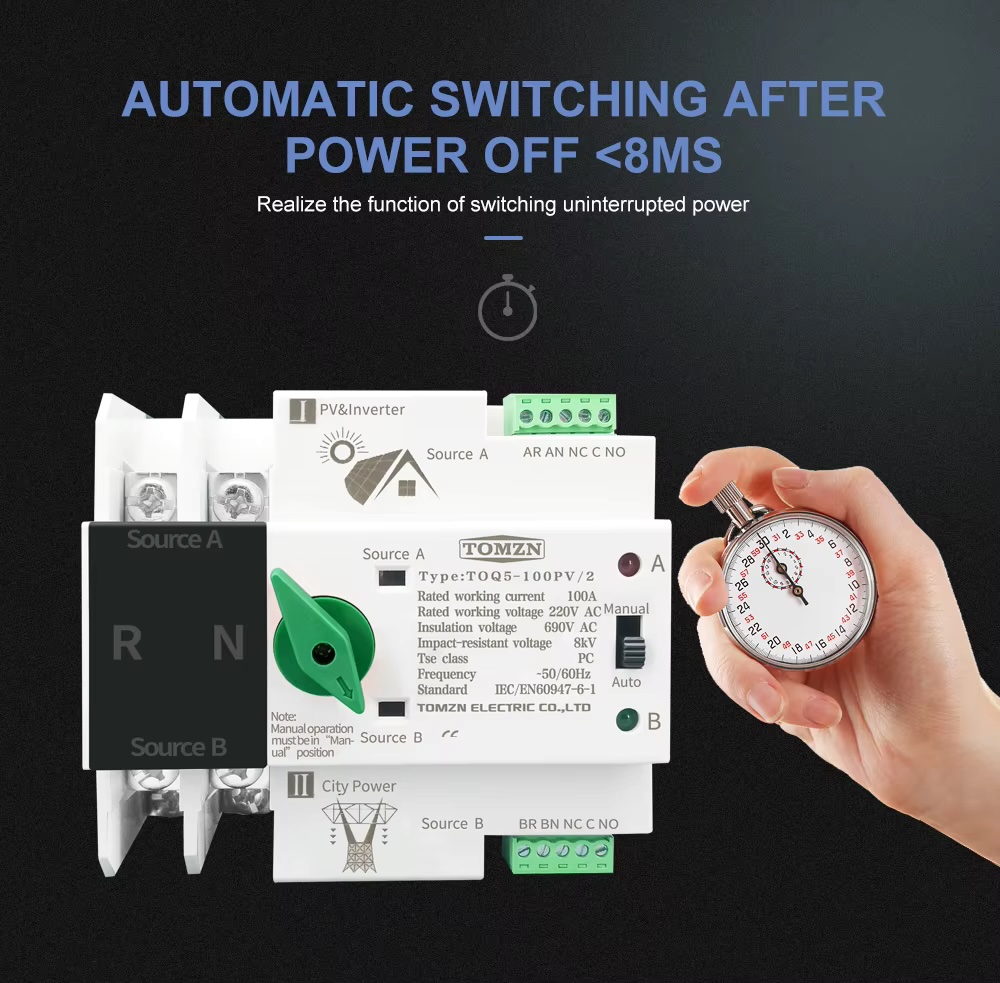

Automatic Power Transfer – Seamlessly switches between PV/inverter and grid power.
Supports Solar Systems – Optimized for PV and hybrid inverter setups.
Auto & Manual Modes – Manual override available via red rotary handle.
High Safety Ratings – 690V AC insulation, 8kV impact resistance.
Certified to IEC/EN60947-6-1 – Meets international ATS standards.

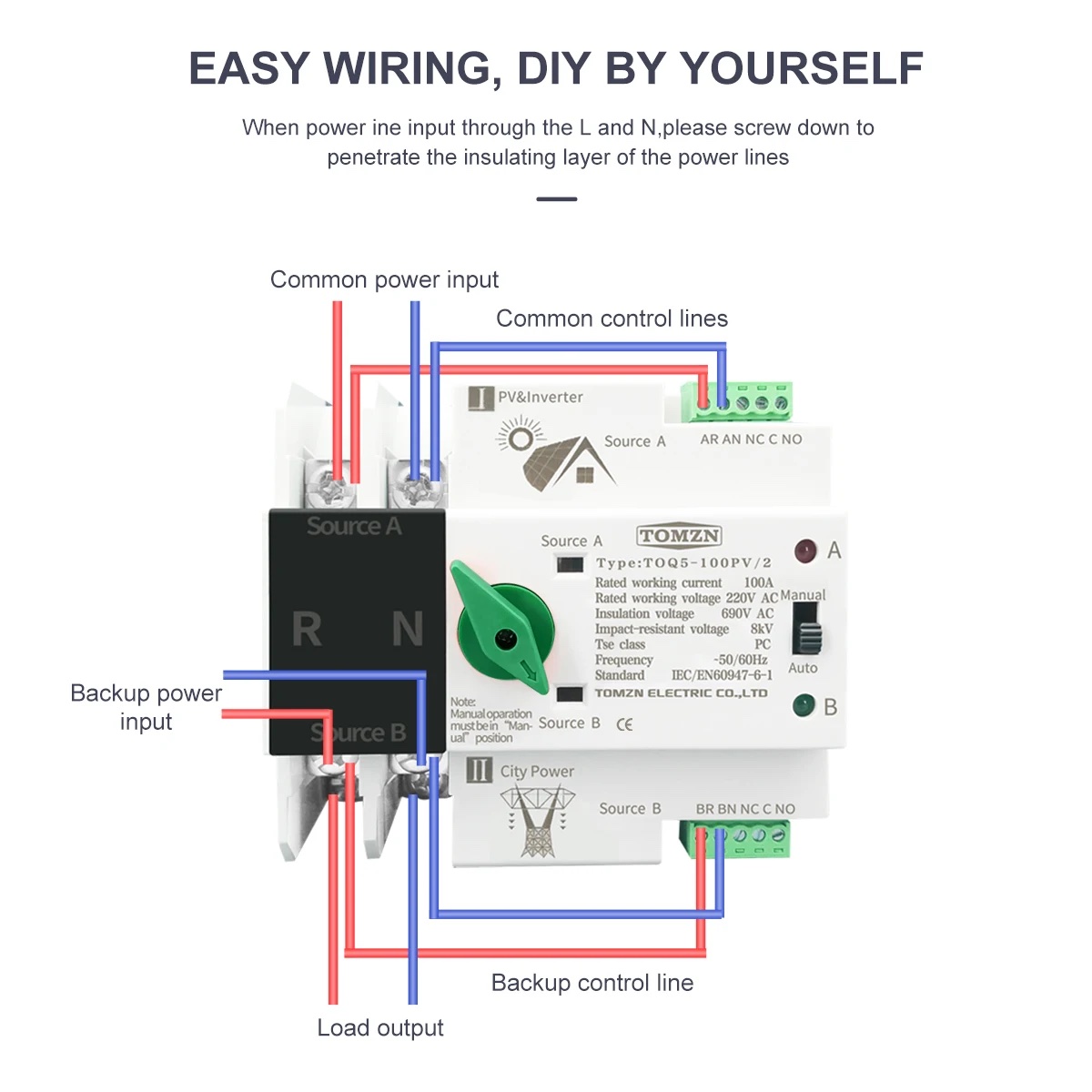

Easy Installation – Compact DIN-rail mounting design.
Technical Specifications
Model: TQO5-100PV/2
Type: Single-Phase Automatic Transfer Switch (ATS)
Rated Current: 100A
Rated Voltage: 220V AC
Insulation Voltage: 690V AC
Impact Resistance: 8kV
Frequency: 50/60 Hz
Power Inputs:
Source A: PV / Solar / Inverter
Source B: Grid / City Power
Operation Modes: Manual / Automatic
Material: Flame-retardant PC plastic
