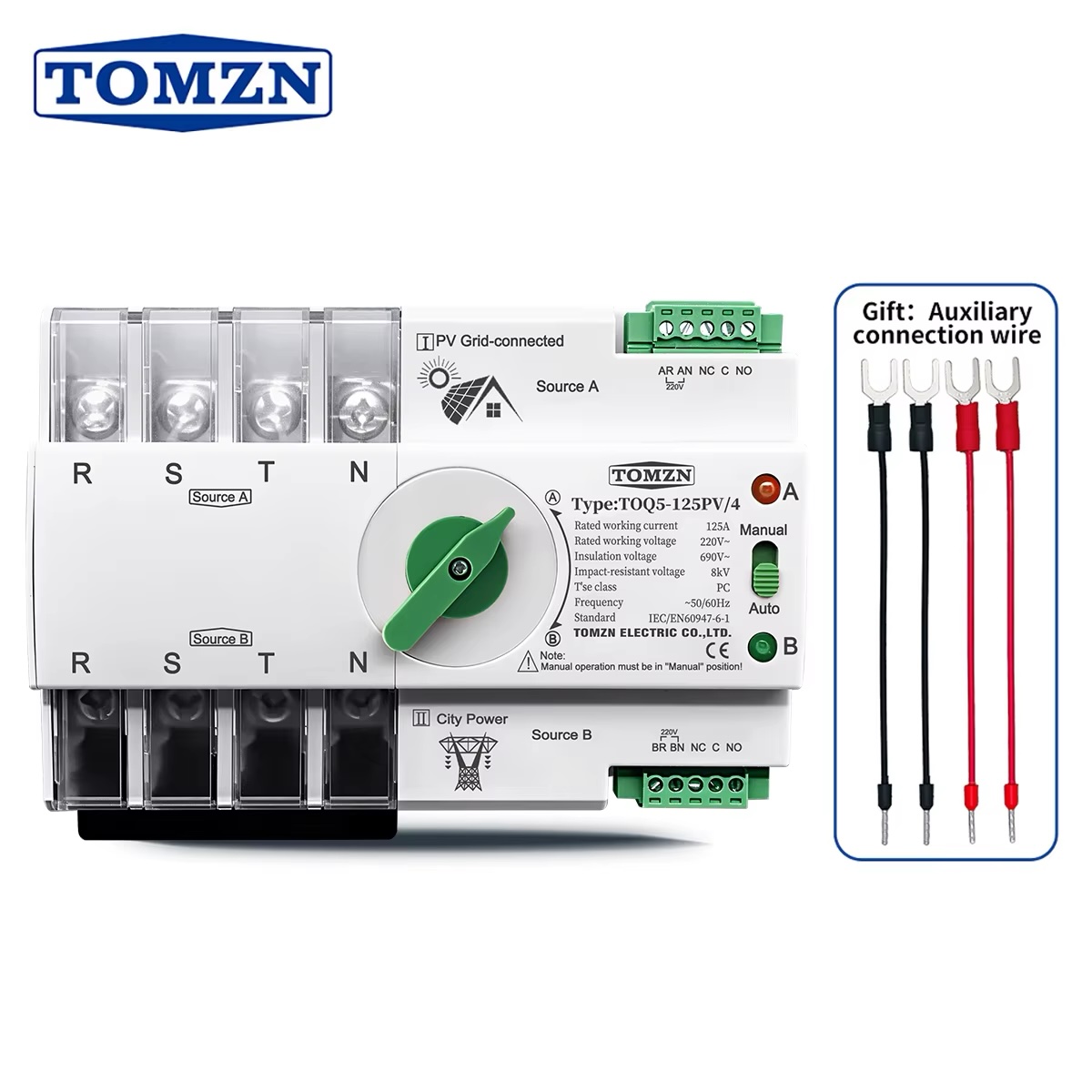

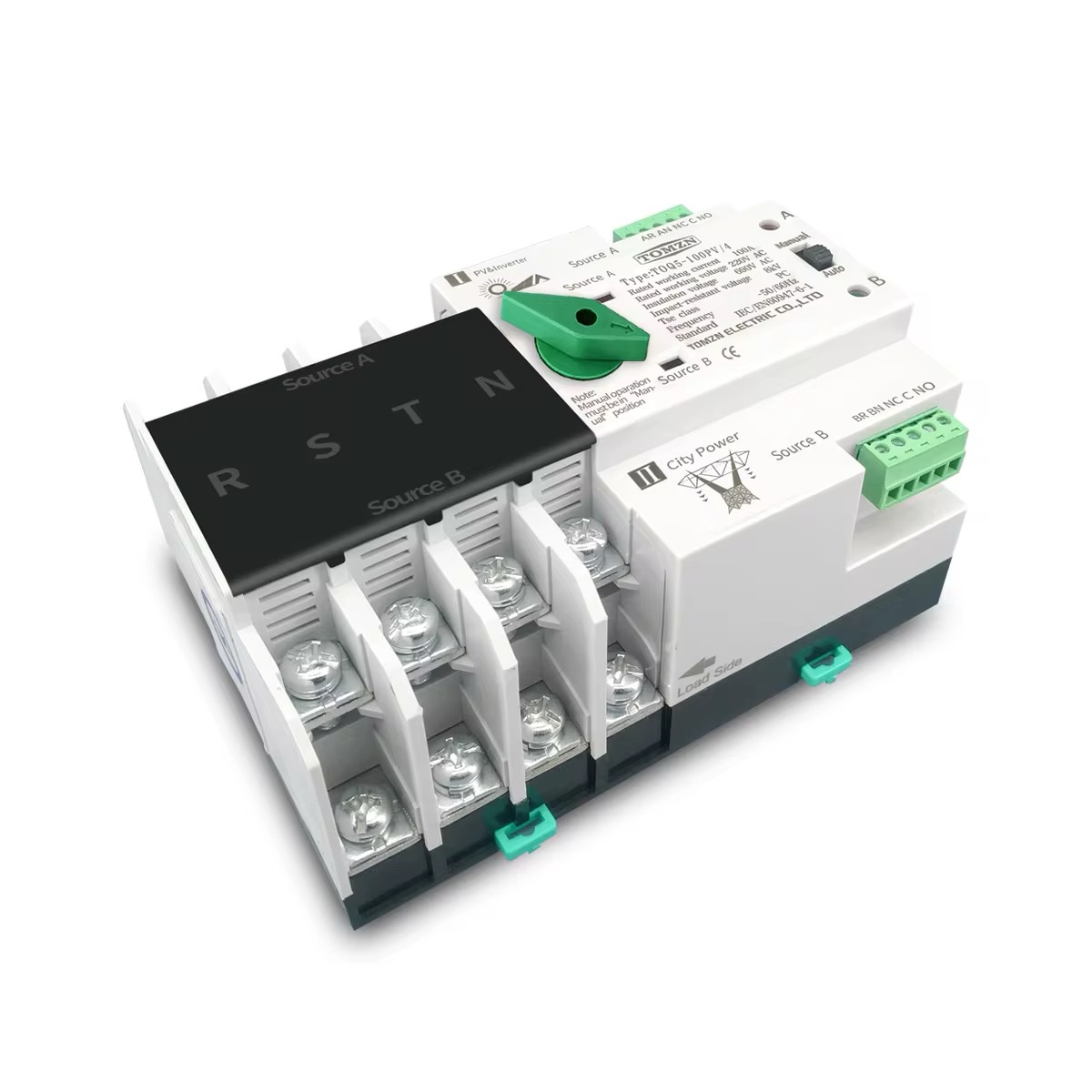

TOMZN TQO5-100PV/4 Three-Phase Automatic Transfer Switch (ATS) – 100A
Power your three-phase electrical systems with confidence using the TOMZN TQO5-100PV/4 Three-Phase Automatic Transfer Switch (ATS).
This high-performance ATS automatically transfers load between Source A (Solar / PV / Inverter) and Source B (Grid / City Power) to ensure uninterrupted operation for industrial, commercial, and high-load applications.
Designed specifically for three-phase systems (R-S-T-N), it supports both automatic and manual control, includes clear source indicators, and is built from flame-retardant PC material. It meets international safety and performance standards, making it ideal for factories, shops, buildings, and large solar hybrid systems.
Key Features
Three-Phase, 100A Capacity – Suitable for high-load applications and commercial installations.
Automatic Transfer Between Two Power Sources – Ensures continuous operation when one source fails.
Optimized for Solar & Inverter Systems – Supports PV input on Source A.
Manual Override Available – Red rotary handle for maintenance or manual switching.
High Safety Ratings – 690V AC insulation and 8kV impact resistance.
IEC/EN60947-6-1 Certified – Complies with international ATS standards.
DIN-Rail Mounting – Compact and easy to install.
Technical Specifications
Model: TQO5-100PV/4
Type: Three-Phase Automatic Transfer Switch (ATS)
Phases: R / S / T / N
Rated Current: 100A
Rated Voltage: 380–400V AC (three-phase)
Insulation Voltage: 690V AC
Impact Resistance: 8kV
Frequency: 50/60 Hz

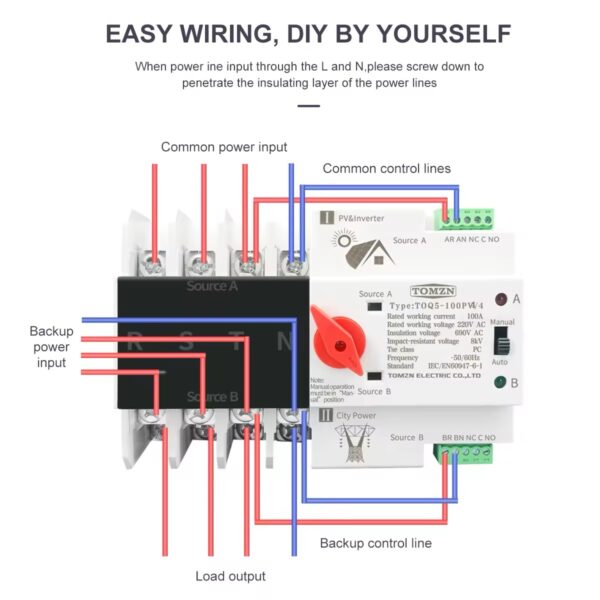

Power Inputs:
Source A: PV / Solar / Inverter
Source B: Grid / City Power
Operation Modes: Manual / Automatic
Material: Flame-retardant PC
